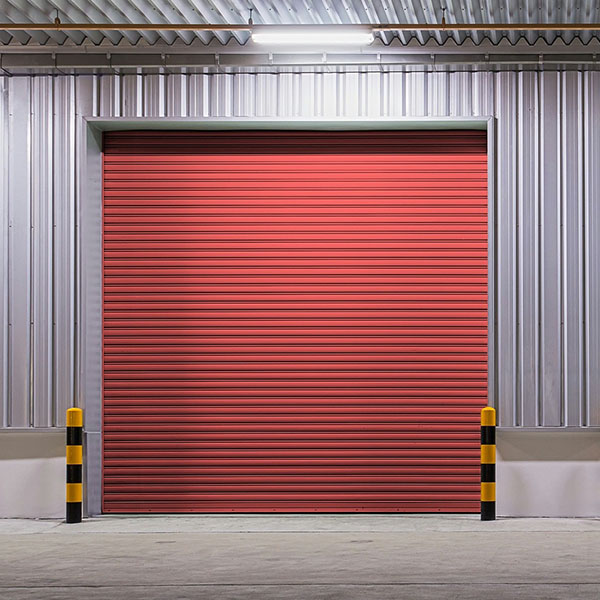

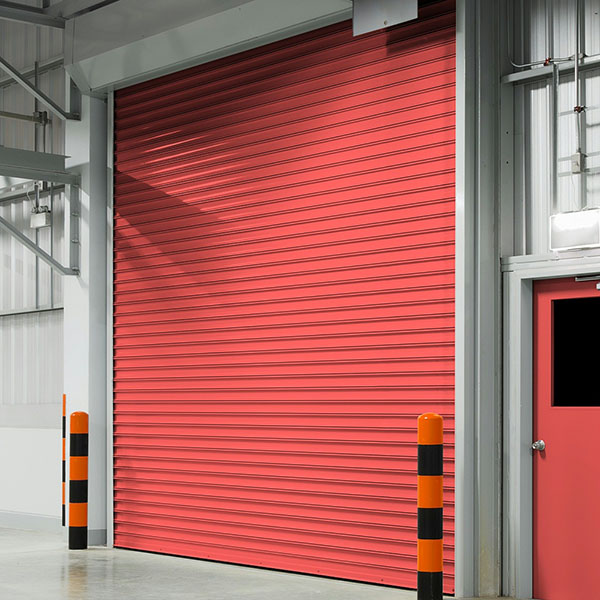

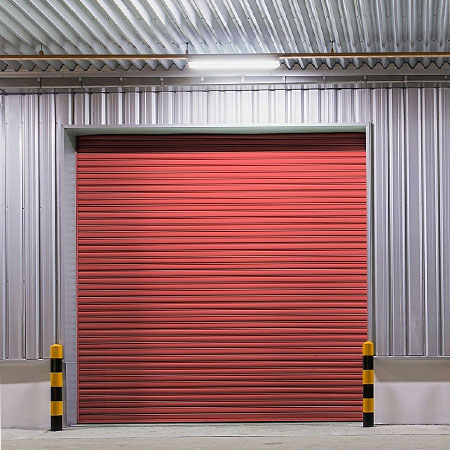

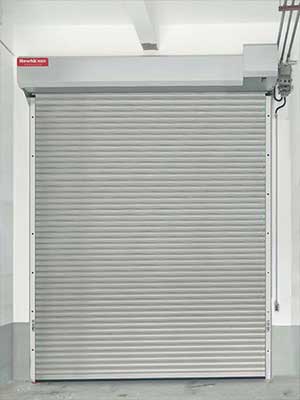

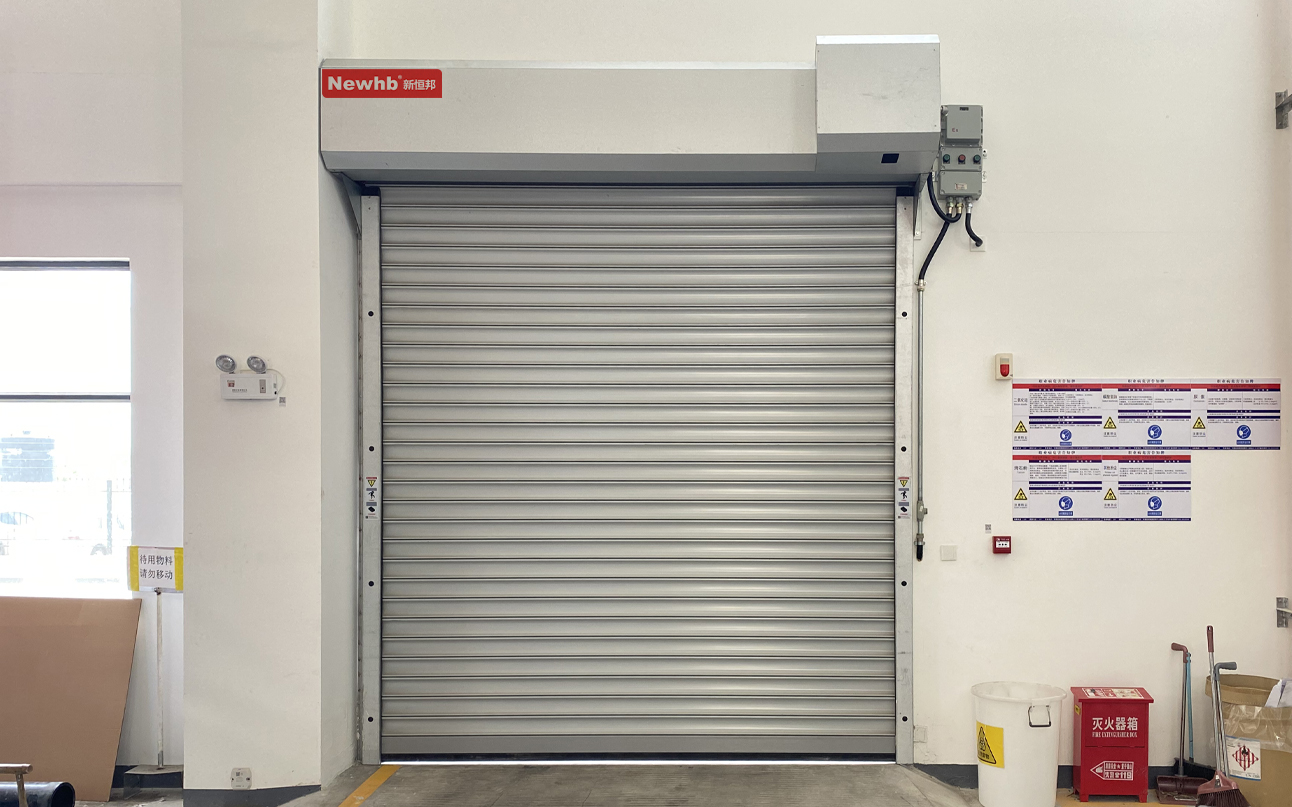

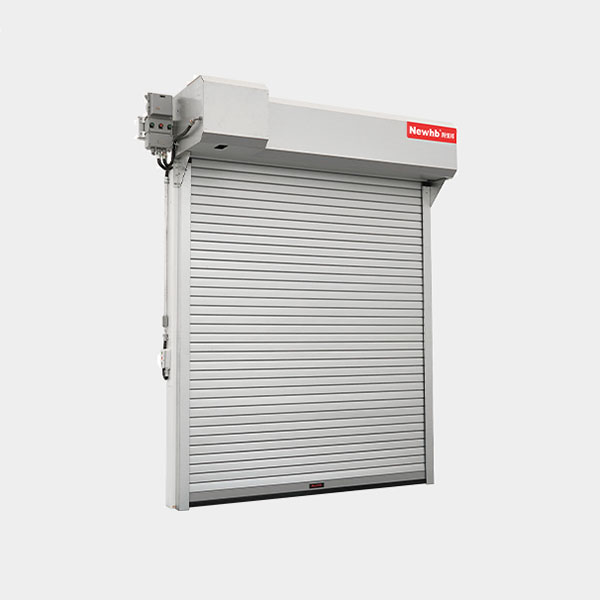

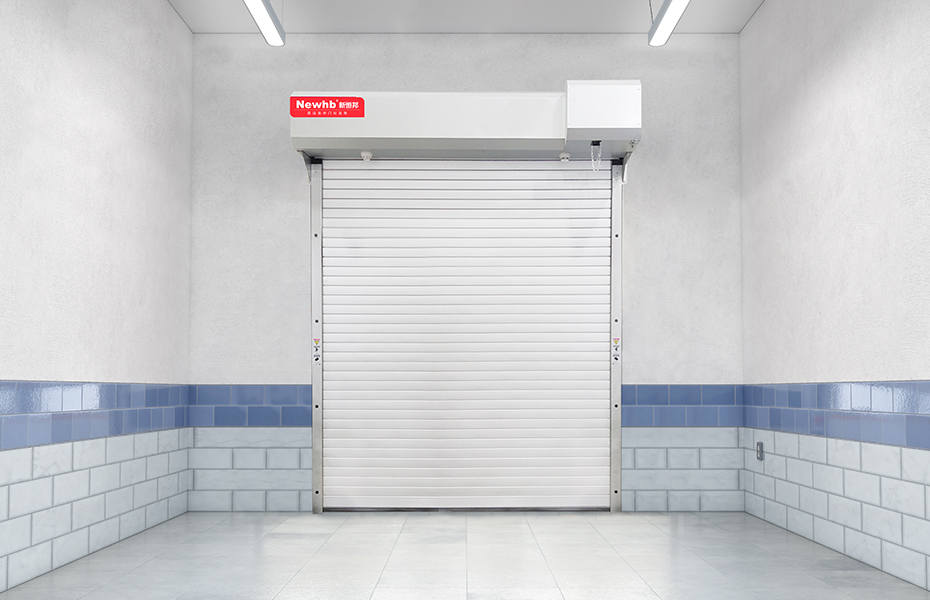

Explosion proof rolling door

Short Description:

The Explosion proof rolling door can be used in other flammable and explosive places except mines. It has a certificate of inspection for the whole door and the explosion-proof grade is C.

  • Brand: Newhb
  • Product name: Explosion proof rolling door
  • Explosion-proof grade: ExiICT4 (including conditions applicable to IIB and IIA)
  • Application: Applicable to all other explosive gas environment except coal mine and underground. It can be optimized to meet the requirements of dust explosion-proof or fireproof explosion-proof.
  • Product Detail


    Drive device Three-phase asynchronous motor Explosion-proof grade CT4
    At the end of beam material Aluminum alloy Safety device Anti - fracture, anti - fall, self - correction

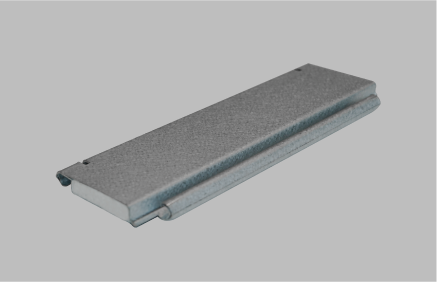

    Curtain material Steel (1.2mm)/ composite type 0.8mm Size Custom
    Door rail material Aluminum plated zinc 2.0mm/ stainless steel 1.5mm Explosion-proof motor power 0.55KW(1.75KW)


    Explosion proof rolling door



    Split box design

    Save installation space, three-dimensional appearance, easy maintenance.

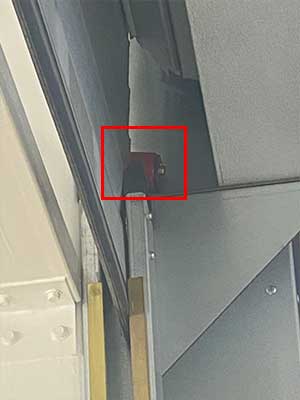

    Automatic deviation rectifying system for anti-cross slice

    Self-adjustment, avoid friction between track and door plate, more quiet.


    Both fire and explosion-proof

    Fire motor + explosion-proof control box, 4.00h fire door panel.


    IIC explosion-proof certification

    Cover IIA, IIB application scenarios, can reach the gas explosion-proof level.


    Weldless process

    Weld-free pre-opening design, connecting combination by bolt bolting, quick and convenient installation.

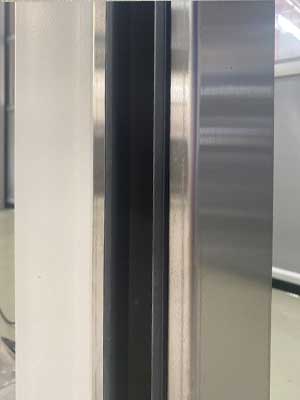

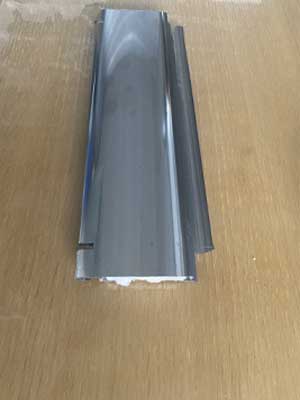

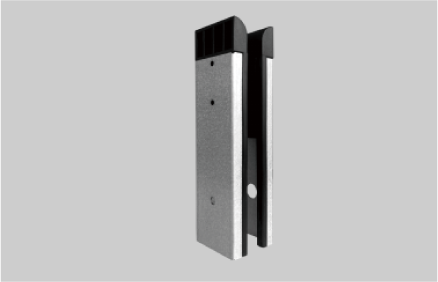

    Integrated track plug-in

    Perfect combination of curtain running track, no rubbing, mute, no wear curtain.

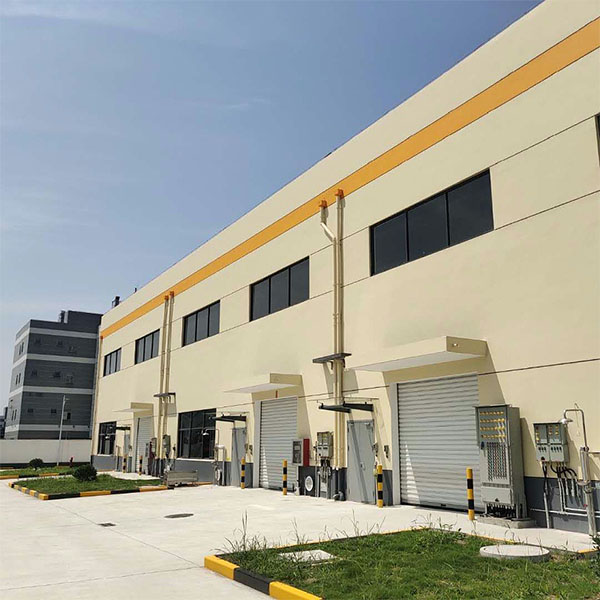

    Project Case

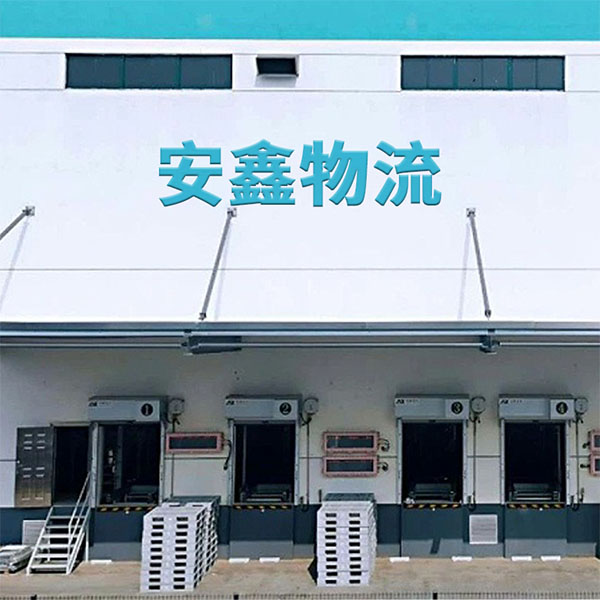

    Anxin Logistics Co., Ltd.

    Newhb Explosion proof rolling door has the CT4 explosion-proof certificate certified by Nanyang explosion-proof electrical research institute, with reliable quality and complete qualifications.


    China Aerospace Huailai Space Vehicle Project

    Newhb helps China's aerospace industry, and provides Explosion proof rolling door and CT4 quality certification for Huailai Space Vehicle Test Center.


    Changshu yonghe fine chemical Co., Ltd.

    Newhb Explosion proof rolling door for chemical plants, class A warehouses, chemical laboratories, pharmaceutical laboratories and other places, to provide safety guarantee.


    Are you a manufacturer of Explosion proof rolling door?

    Our Newhb Rolling Door Co., Ltd. is the source manufacturer of rolling shutter doors. The company has more than 30 modern operating machines, including automatic door roll forming machines, laser cutting machines, bending forming machines, and shears. There are dozens of technical R&D teams, 31 utility model patents and invention patents. Welcome new and old customers to visit and guide us.

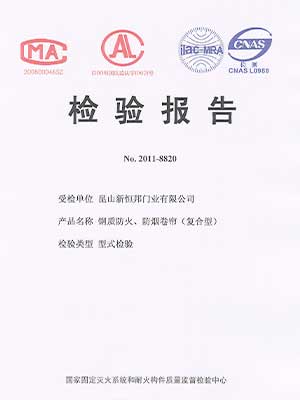

    Is the Newhb Explosion proof rolling door a whole door inspection report?

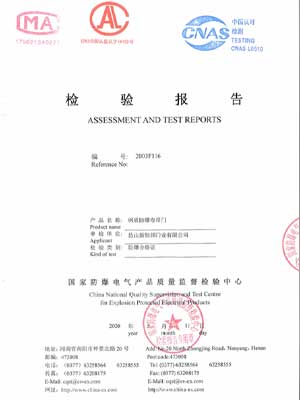

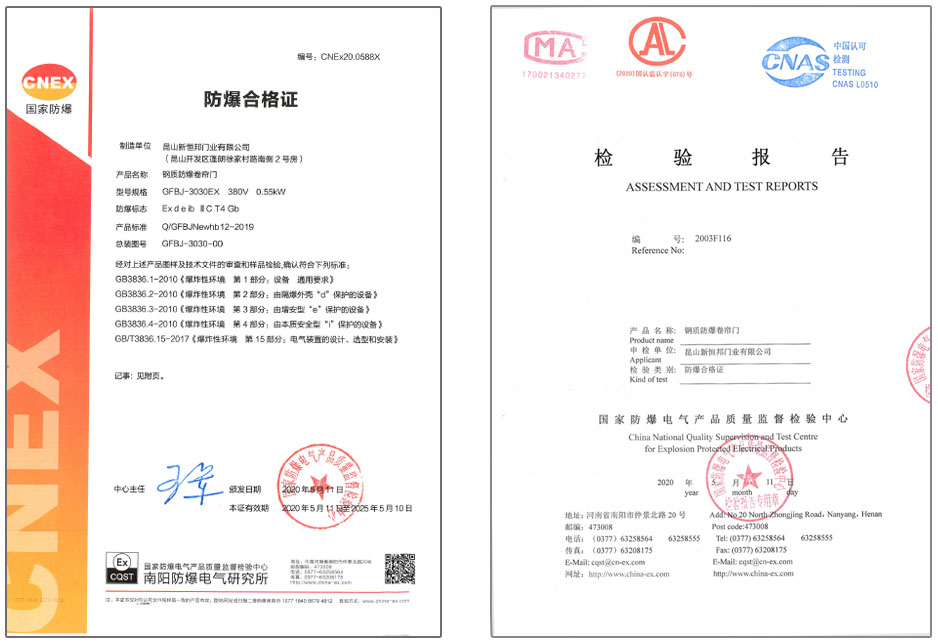

    We have an explosion-proof certificate issued by the Explosion-proof Electrical Institute of the National Explosion-proof Electrical Product Quality Supervision and Inspection Center. Different from the electrical explosion-proof on the market, we can provide an explosion-proof certificate for the entire door. The explosion-proof technology of the whole door is more mature and safer.

    What is the difference between explosion-proof grade IIBT4 and IICT4?

    Class II electrical equipment is classified into A, B and C according to the minimum spark energy of explosive gases. The representative gas IIA is propane, the representative gas IIB is ethylene, and the representative gas IIC is hydrogen, of which IIC is the highest grade and can be used in the service conditions of IIB and IIA equipment. T4 indicates that the maximum surface temperature of the equipment does not exceed 135 ° C. The choice of explosion-proof grade is mainly based on the use of the scene to distinguish, our company for gas, dust, dangerous chemicals and other flammable and explosive site design are quite research, according to the use of different scenes demand, can provide the overall solution.


    Is the Newhb Explosion proof rolling door a special door?

    Explosion proof rolling doors are special doors. Special doors refer to doors with special functions, such as fire doors, explosion-proof doors, anti-wind doors, thermal insulation doors, soundproof doors, etc. All doors with special functions are considered special doors. Buy special doors and find Newhb.

    Do you have any engineering cases of Explosion proof rolling doors?

    Newhb Rolling Door Co.,Ltd based on the rolling shutter industry for 20 years, has been focusing on the production and research and development of special rolling shutter doors, Explosion proof rolling doors since the listing, reputation, He has participated in the construction of Explosion proof rolling doors for China Aerospace Huilai Space Vehicle Test Center, Changshu Yonghe Fine Chemicals (dust explosion-proof), Huai 'an Xiangyun Xusheng Chemical (dangerous chemicals), SAIC Volkswagen Automobile (natural gas), and Anxin Flow. He has rich experience in the industry. Welcome to visit our company on the spot.
