Folding fire shutter door

Short Description:

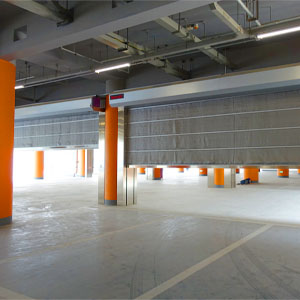

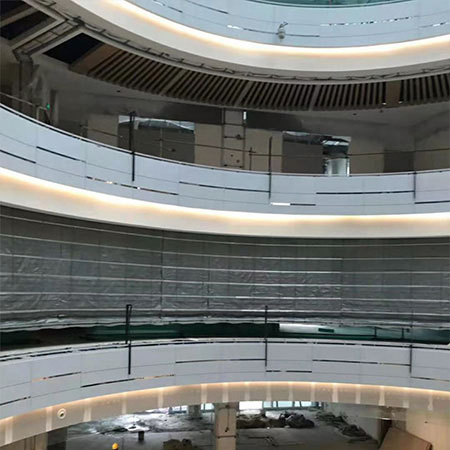

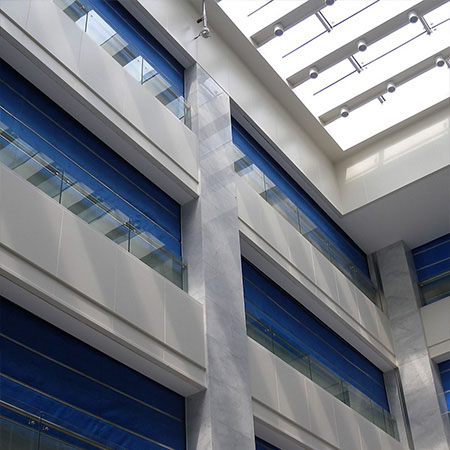

Folding fire shutter doors are suitable for larger door openings, and can be made into L-shaped, O-shaped, U-shaped, etc., and can be installed in elevator entrances, shopping malls atriums, underground parking lots and other places.

  • Brand: Newhb
  • Product name: Folding fire shutter door
  • Fire rating: Extra grade, fire resistance limit of 4H, to meet the back fire surface temperature rise temperature isolation requirements

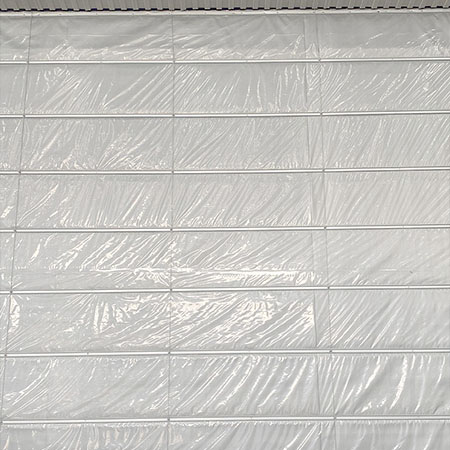

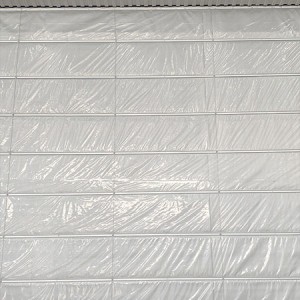

  • Material of curtain: Swing wire fireproof blanket/fireproof cloth/decorative cloth/radiation proof cloth

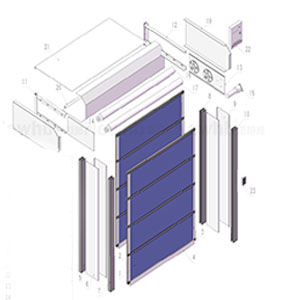

  • Product Detail


    Driving device Electric fireproof door rolling machine The control mode Three buttons/fire linkage
    Door rail material Aluminum plated zinc 1.5mm/ stainless steel 2.0mm Refractory limit More than 4.00 H
    Curtain material Swing wire fireproof blanket/fireproof cloth/decorative cloth/radiation proof cloth The noise The average 58 db
    Safety device Temperature control release performance, two - step closing performance The motor power 0.55KW(1.75KW)





    Track Plug-in All-in-One

    In line with the running track of the curtain piece, no scraping, silent and wear curtain piece.

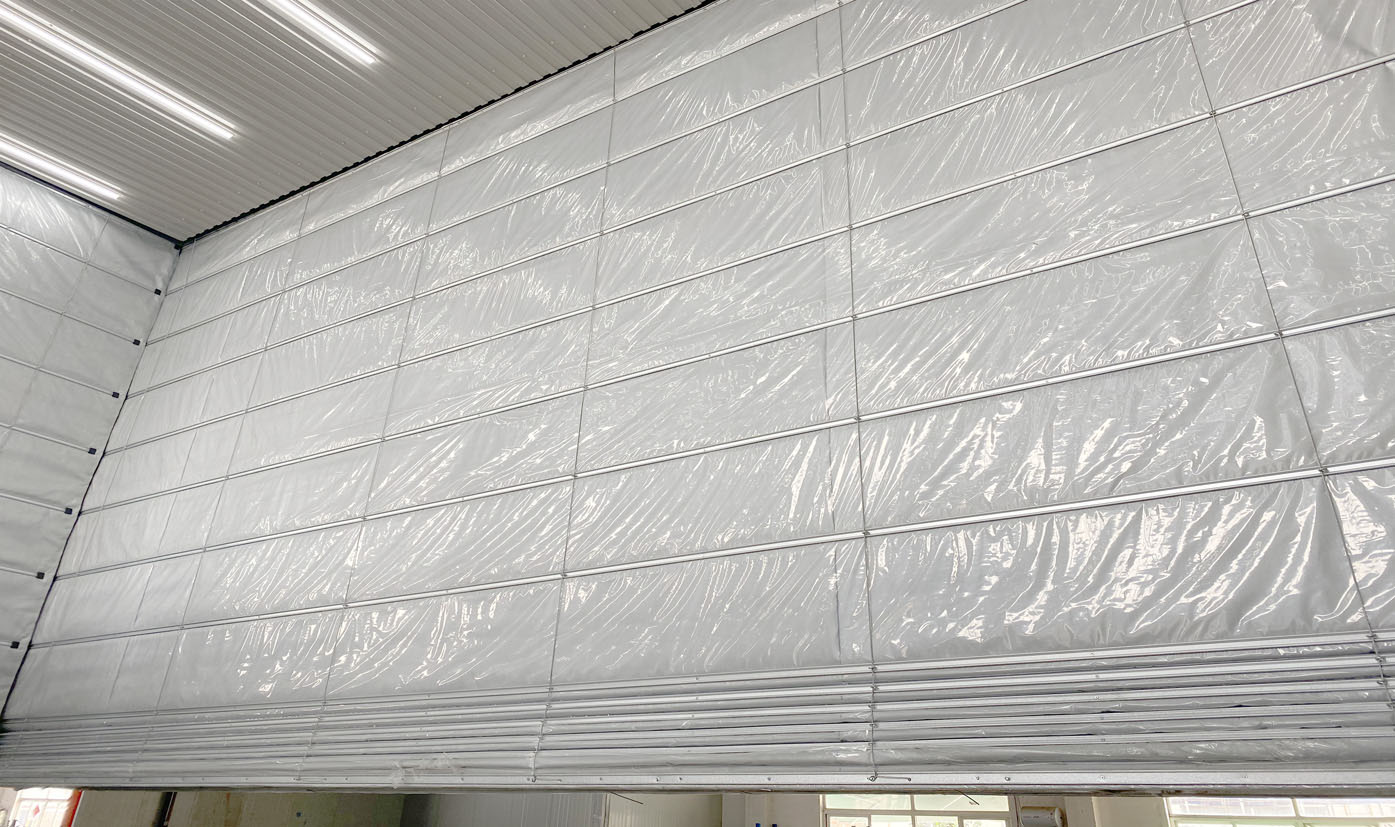

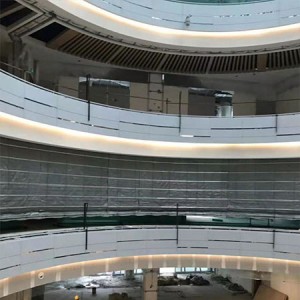

    Large span special-shaped structure

    It can be made of large door size, and has the environment of corner and arc.


    Fire control linkage can be realized

    Linkage with fire control system to realize smoke temperature drop in two steps.





    Jinan Yinfeng Technology Co., Ltd.

    In order to build Yinfeng Science and Technology Industrial Park, Jinan Yinfeng Science and Technology chose Newhb Folding fire shutter door. Our technicians came to measure the size and provided the design and construction scheme. The customer was satisfied and the contract was successfully signed.


    Shangyin Technology (Suzhou) Co., Ltd.

    Shangyin Technology (Suzhou) Co., Ltd. is the domestic branch of Shangyin Technology. Newhb provides Folding fire shutter doors for its newly-built plant in Phase 1.5. As a fireproof partition, it provides super-size customized services.


    Jiangsu Qianlengang Industrial Co., Ltd.

    In 2018, Qianrengang was rated as "Great Craftsman Brand in China's Down Industry" by China Down Industry Association, and Newhb was rated as "Top Ten Brands of Roller Curtain Door" in the same year. It is a great honor to contribute to the construction of local enterprises.


    Are you a Folding fire shutter door manufacturer?

    Our Newhb Rolling Door Co., Ltd. is the source manufacturer of rolling shutter doors. The company has more than 30 modern operating machines, including automatic door roll forming machines, laser cutting machines, bending forming machines, and shears. There are dozens of technical R&D teams, 31 utility model patents and invention patents. Welcome new and old customers to visit and guide us.

    Is the Newhb Folding fire shutter door a special door?

    Folding fire shutter door belong to special doors, which refer to the general name of doors with special functions, such as fire doors, explosion-proof doors, anti-wind doors, insulation doors, soundproof doors, etc., doors with special functions They are all special doors. Buy special doors and find Newhb.

    What is the fire resistance time of the Newhb Folding fire shutter door?

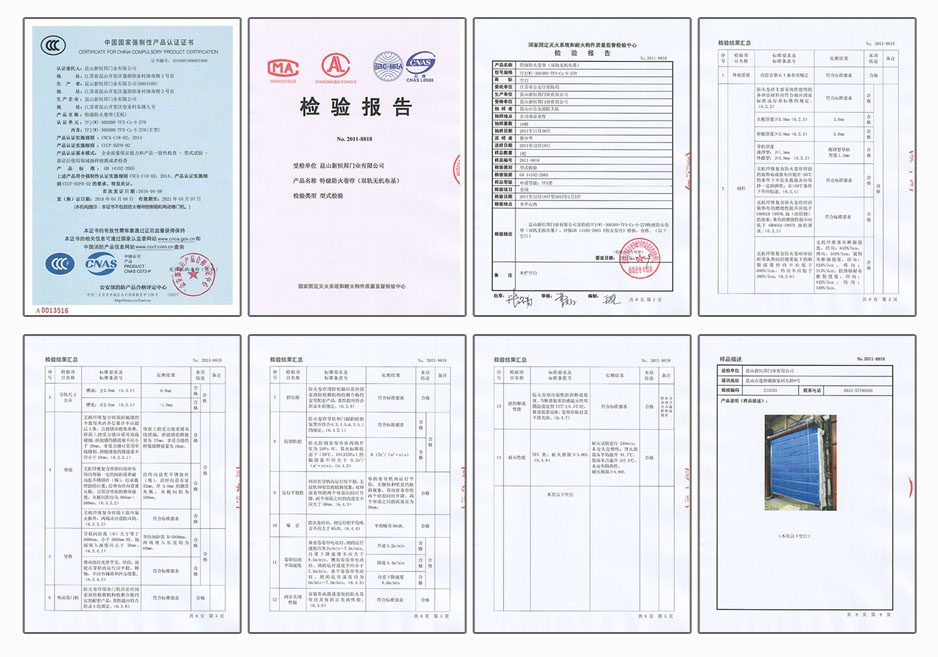

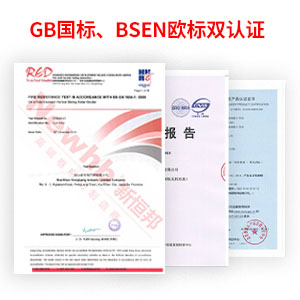

    In the product test, the Newhb Folding fire shutter door was subjected to a fire resistance test for 240 minutes: integrity was not lost; the highest average temperature rise of the back fire surface was 82.4℃, and the highest single-point temperature rise was 94.7 ℃. Thermal. Fire resistance limit>4.00h, all comply with national standards.

    How much is the Newhb Folding fire shutter door?

    Newhb Folding fire shutter door is a customized product. Because the specific door size is different, the configuration is different, so you need to quote according to the actual needs of the customer. Please contact our sales consultant to get a quick quote. Provide one-to-one exclusive service.

    What is the meaning of the temperature control release performance of the Folding fire shutter door?

    The temperature control release performance of the Folding fire shutter door is what we often call high-temperature fusing. When a certain temperature is reached, the rolling shutter door automatically falls. The Folding fire shutter door is equipped with a temperature-controlled release device. When the temperature around the temperature sensing element of the release device reaches 73°C ± 0.5°C, the release device acts and the shutter closes according to its own weight.

    What services can you provide us?

    Newhb Rolling Door Co.,Ltd provides you with on-site structural design, drawing deepening and other services, production, remote installation guidance, after-sales and other one-stop services, and the entire door provides one-year free maintenance service.
