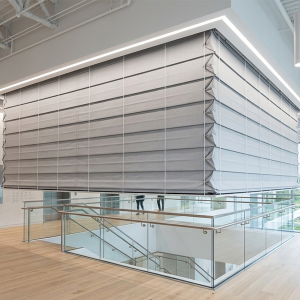

EN Single-Curtain Inorganic Fire Folding Door

Short Description:

The EN single-curtain inorganic fire folding door is tested to EN 1634-1, achieving a fire integrity rating of 120 minutes. It is widely used in commercial and residential buildings, including floor openings, escalator/staircase gaps, building perimeter gaps, bus/car drop-off zones, and multi-purpose plazas.

Send email to us Download as PDF

Product Detail

PRODUCT CONFIGURATION

Drive device	Fire-Rated Motor	Control Method	Manual Push-Button / Fire Alarm Interlock
Speed	0.1m/s	Safety Device	Thermal Release Device / Smoke & Temperature Detector (optional)
Track Material	2.0mm galvanized steel sheet / 2.0mm stainless steel sheet	Fire Resistance & Insulation Limit	≥ 120 min
Curtain Material	1.2mm Fire-resistant Fabric

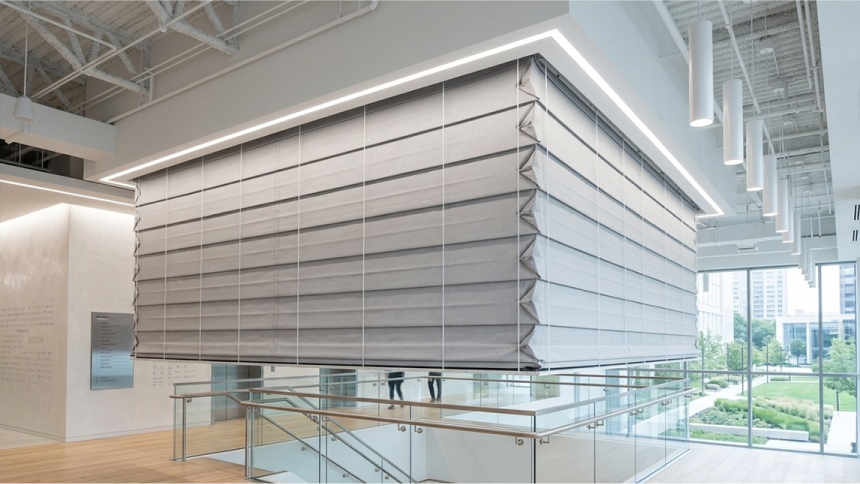

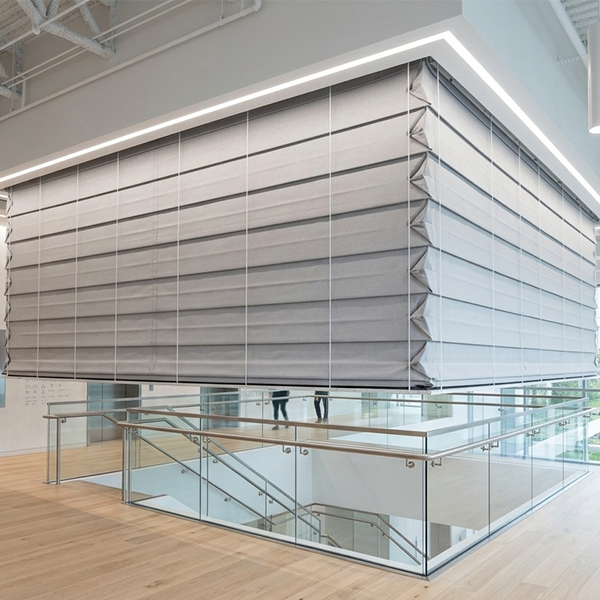

PRODUCT DISPLAY

QUALIFICATION CERTIFICATES

USER CASES

FAQ

What is the fire resistance duration of this European-standard double-layer inorganic fire folding door, and which certifications has it obtained?

This door boasts a fire resistance and thermal insulation performance exceeding 240 minutes. It has passed fire tests in accordance with European standard BS EN 1634-1:2014. Complete certificates and test reports are available, making it suitable for export projects and high-end fire safety constructions.

Is this door suitable for large-span and irregular openings? What shapes can it be customized into?

It is applicable for large-span openings and customizable into folding types such as arc, corner, L-shape and Z-shape, ideal for complex scenarios including atriums, commercial complexes and large factories.

What materials are used for the door body? How are its thermal insulation and smoke barrier performances?

The door curtain is composed of two layers of fireproof cotton with one layer of aluminum foil cloth in between, and both sides are equipped with smoke and fire barrier cloth. It delivers excellent thermal insulation and superior smoke sealing performance, complying with fire compartmentation standards.

Newhb Inorganic cloth fireproof rolling door How much is one？

The Newhb Inorganic cloth fireproof rolling door is a customized product. Because the specific door size is different, the configuration is different, so you need to quote according to the actual needs of the customer, please contact our sales consultant to quickly obtain a quotation and provide one-to-one exclusive service

Do you provide installation service? What about warranty and after-sales support?

We provide one-stop services including on-site survey, drawing deepening, production and installation. The complete door set enjoys one year of free maintenance service. The door body is corrosion-resistant and rust-proof, with simple and convenient daily maintenance.
